Product Summary

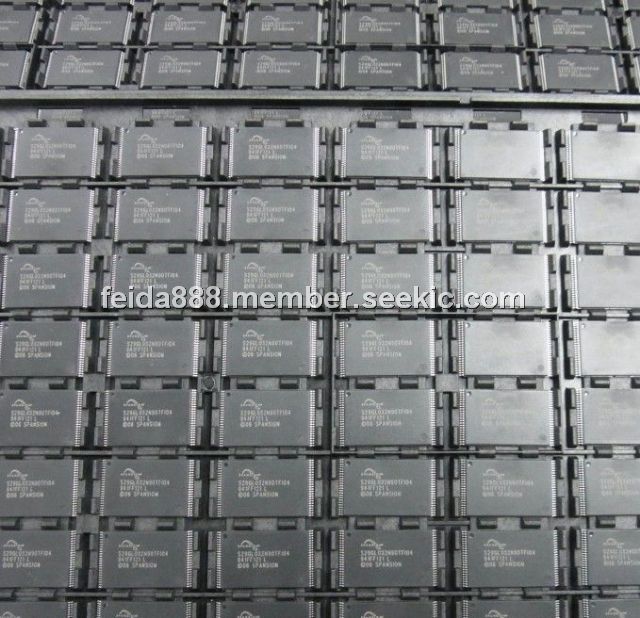

The S29GL032N90TFI04 is a 3.0-Volt single-power Flash memory manufactured using 110 nm MirrorBit technology. The device is a 64-Mb device organized as 4,194,304 words or 8,388,608 bytes. Depending on the model number, the S29GL032N90TFI04 has 16-bit wide data bus only, or a 16-bit wide data bus that can also function as an 8-bit wide data bus by using the BYTE# input. The S29GL032N90TFI04 can be programmed either in the host system or in standard EPROM programmers.

Parametrics

S29GL032N90TFI04 absolute maximum ratings: (1)Storage Temperature, Plastic Packages: –65 to +150℃; (2)Ambient Temperature with Power Applied: –65 to +125℃; (3)Voltage with Respect to Ground, VCC: –0.5 V to +4.0 V; (4)A9, OE#, ACC and RESET#: –0.5 V to +12.5 V; (5)All other pins: –0.5 V to VCC+0.5 V; (6)Output Short Circuit Current: 200 mA.

Features

S29GL032N90TFI04 features: (1)Single power supply operation; (2)Manufactured on 110 nm MirrorBit process technology; (3)Secured Silicon Sector region; (4)Flexible sector architecture; (5)Enhanced VersatileI/O Control; (6)Compatibility with JEDEC standards; (7)100,000 erase cycles typical per sector; (8)20-year data retention typical.

Diagrams

S29GL032N90TFI04 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
S29GL032N90TFI040
S29GL032N90TFI040

Spansion

Flash 32MB 2.7-3.6V 90ns BTM SECTOR PBF

Data Sheet

0-1: $0.82
1-25: $0.77
25-100: $0.75
100-500: $0.71
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
S29GL064N90TFI030
S29GL064N90TFI030

Spansion

Flash 3V 64Mb Float Gate two address 90s

Data Sheet

0-1: $2.44
1-25: $2.16
25-100: $1.99
100-250: $1.80
S29GL064N90BFI040
S29GL064N90BFI040

Spansion

Flash 64M PAGE-MODE FLASH MEMORY

Data Sheet

0-1: $0.86
1-25: $0.83
25-100: $0.81
100-250: $0.79
S29GL064N90TFI020
S29GL064N90TFI020

Spansion

Flash 64MB 2.7-3.6V 90ns PBF

Data Sheet

0-1: $1.59
1-25: $1.51
25-100: $1.46
100-500: $1.39
S29GL032N90FFI010
S29GL032N90FFI010

Spansion

Flash 3V 32Mb Float Gate standard config 90s

Data Sheet

0-1: $1.02
1-25: $0.97
25-100: $0.94
100-500: $0.89
S29GL032N90TFI040
S29GL032N90TFI040

Spansion

Flash 32MB 2.7-3.6V 90ns BTM SECTOR PBF

Data Sheet

0-1: $0.82
1-25: $0.77
25-100: $0.75
100-500: $0.71
S29GL064N90TFI010
S29GL064N90TFI010

Spansion

Flash 3V 64Mb Float Gate highest address 90s

Data Sheet

0-1: $1.59
1-25: $1.51
25-100: $1.46
100-500: $1.39
