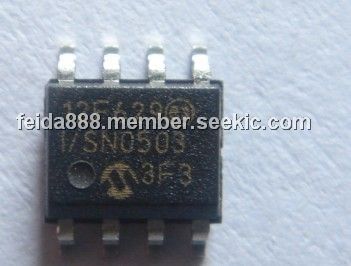

12F629

8-Pin FLASH-Based, 8-Bit CMOS Microcontroller, SOP8, 8-level deep hardware stack, 20MHz

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.50~0.70 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.50~0.70

PartNumber:: 12F629

Brand:: Microchip Technology - Microchip | Pack: SOP | D/C: 05+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Cherry's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-14

From Other Seller

Part Number:12F629
US $0.50 - 0.70
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
SLA4060

US $0.80 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The 12F629 is an 8-Pin FLASH-Based 8-Bit CMOS Microcontroller. It has a 13-bit program counter capable of addressing an 8K x 14 program memory space. Only the first 1K x 14 (0000h - 03FFh) for the 12F629 is physically implemented.

Parametrics

12F629 absolute maximum ratings: (1)Ambient temperature under bias:-40℃ to +125℃; (2)Storage temperature:-65℃ to +150℃; (3)Voltage on VDD with respect to VSS:-0.3 to +6.5V; (4)Voltage on MCLR with respect to Vss:-0.3 to +13.5V; (5)Voltage on all other pins with respect to VSS:-0.3V to (VDD + 0.3V); (6)Total power dissipation:800 mW; (7)Maximum current out of VSS pin:300 mA; (8)Maximum current into VDD pin:250 mA; (9)Input clamp current:±20 mA; (10)Output clamp current:±20 mA; (11)Maximum output current sunk by any I/O pin:25 mA; (12)Maximum output current sourced by any I/O pin:25 mA; (13)Maximum current sunk by all GPIO:125 mA; (14)Maximum current sourced all GPIO:125 mA.

Features

12F629 features: (1)Only 35 instructions to learn:All single cycle instructions except branches; (2)Operating speed: DC - 20 MHz oscillator/clock input, DC - 200 ns instruction cycle; (3)Interrupt capability; (4)8-level deep hardware stack; (5)Direct, Indirect, and Relative Addressing modes; (6)Power saving SLEEP mode; (7)Wide operating voltage range - 2.0V to 5.5V; (8)Industrial and Extended temperature range; (9)Low power Power-on Reset (POR); (10)Power-up Timer (PWRT) and Oscillator Start-up Timer (OST); (11)Brown-out Detect (BOD); (12)Watchdog Timer (WDT) with independent oscillator for reliable operation; (13)Multiplexed MCLR/Input-pin; (14)Interrupt-on-pin change; (15)Individual programmable weak pull-ups; (16)Programmable code protection; (17)High Endurance FLASH/EEPROM Cell; (18)One analog comparator; (19)Programmable on-chip comparator voltage reference (CVREF) module; (20)Programmable input multiplexing from device inputs; (21)Comparator output is externally accessible.
