Product Summary

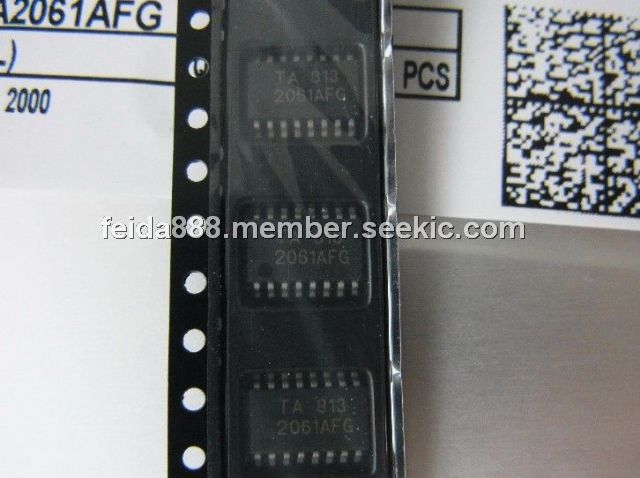

The TA2061AFG is an IC developed for use in the transmitter of infrared audio signal transmit/receive systems.It incorporates a 2.3/2.8MHz voltage controlled oscillator for the linear audio signal transmission band. The TA2061AFG is ideal for the transmitters of wireless stereo headphones and wireless microphones that use infrared tranmission.

Parametrics

TA2061AFG absolute maximum ratings: (1)supply voltage: 14.0V;(2)power dissipation: 400mW;(3)operating temperature: -25℃ to 75℃;(4)storage temperature: -55℃ to 150℃.

Features

TA2061AFG features:(1)built-in two crystal VCO channels for audio signal tran mission:fc=2.3/2.8 MHz;(2)built-in pre-emphasis;(3)VCO fo adjustment on/off function;(4)built-in audio signal AGC;(5)built-in auto on/off function;(6)few external parts;(7)conpact package:16-pin 1mm pitch flat package.

Diagrams

TA2061AFG block diagram
