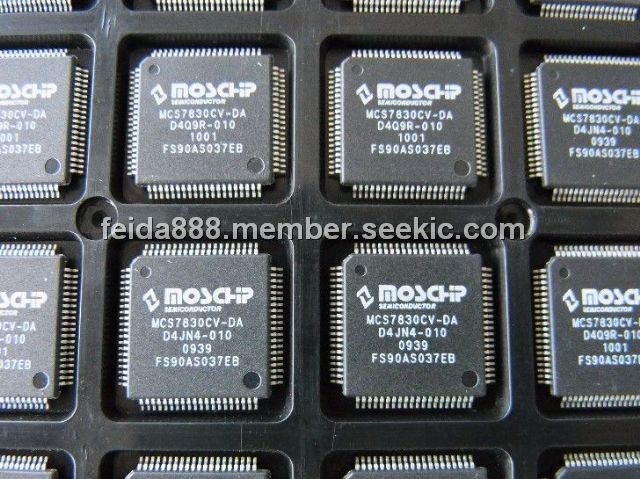

Product Summary

The USB to MAC Ethernet Controller MCS7830CV-DA is a unique solution to interface 10/100 Base-T Ethernet devices to the Universal Serial Bus (USB-2.0). This device has been specifi cally designed to provide a simple solution to communicate with Ethernet applications. This is accomplished by its highly integrated functionality. The MCS7830CV-DA is ideal for LAN (Local Area Network) applications. It provides internal buffering to enable parallel operations from USB ports on the host side, and MAC ports on the Ethernet side. The MCS7830CV-DA also provides a serial interface for an EEPROM for storing the MAC-ID, VID, PID, and other confi gurable settings.

Parametrics

MCS7830CV-DA absolute maximum ratings: (1)Operating Temperature: 0 ℃ to +70 ℃; (2)Storage Temperature: -40 ℃ to +150 ℃; (3)ESD HBM (MIL-STD 883E Method 3015-7 Class 2): 2000V; (4)ESD MM (JEDEC EIA/JESD22 A115-A): 200V; (5)CDM (JEDEC JESD22 C101-A) 500V; (6)Latch up (JESD No. 78, March 1997): 200 mA, 1.5 x VCC; (7)Junction Temperature (Tj): 115 ℃; (8)Thermal Resistance of Junction to Ambient (Still Air): 60 ℃/W.

Features

MCS7830CV-DA features: (1)USB 2.0 Device Controller; (2)Integrated USB 2.0 PHY; (3)USB Specifi cation 2.0 Compliant; (4)Supports all USB Standard Commands; (5)Supports Five Vendor Specifi c Commands; (6)Supports USB Suspend/Resume Detection Logic; (7)10/100 Mbps Ethernet Controller; (8)Integrated MAC and PHY; (9)IEEE 802.3 Compliant; (10)Supports Full Duplex Operation in 10/100 Mbps Modes; (11)Exhaustive MAC Status Reporting; (12)Supports PAUSE Control Frames; (13)Support Low Power Mode / Remote Wakeup; (14)Serial Interface to Read/Write to 93LC46B EEPROM through USB; (15)On-Chip FIFOs for Upstream and Downstream Data Transfers; (16)WHQL Certified; (17)Confi gurable Vendor and Product IDs through EEPROM; (18)Supports iSerial Number and Locally Administered Network Address; (19)Supports MII interface for External Ethernet PHY (128-pin package only).

Diagrams

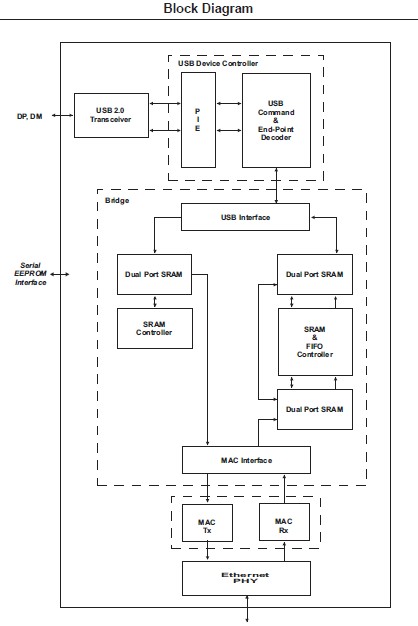

MCS7830CV-DA block diagram
