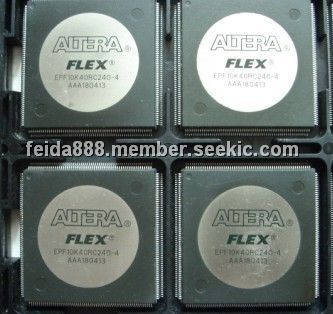

Product Summary
The EPF10K40RC240-4 is the the industry first embedded PLD. Based on reconfigurable CMOS SRAM elements, the Flexible Logic Element MatriX (FLEX) architecture incorporates all features necessary to implement common gate array megafunctions. With up to 250,000 gates, the EPF10K40RC240-4 provides the density, speed, and features to integrate entire systems, including multiple 32-bit buses, into a single device. The EPF10K40RC240-4 is reconfigurable, which allows 100% testing prior to shipment. As a result, the designer is not required to generate test vectors for fault coverage purposes. Additionally, the designer does not need to manage inventories of different ASIC designs; the EPF10K40RC240-4 can be configured on the board for the specific functionality required.
Parametrics
EPF10K40RC240-4 absolute maximum ratings: (1)Supply voltage With respect to ground (2): –2.0 to 7.0 V; (2)DC input voltage: –2.0 to 7.0 V; (3)DC output current, per pin: –25 to 25 mA; (4)Storage temperature No bias: –65 to 150℃; (5)Ambient temperature Under bias: –65 to 135℃; (6)Junction temperature: Ceramic packages, under bias, 150℃; PQFP, TQFP, RQFP, and BGA packages, under bias, 135.
Features
EPF10K40RC240-4 features: (1)The industry first embedded programmable logic device (PLD) ; (2)It providing System-on-a-Programmable-Chip (SOPC)integration; (3)High density: 10,000 to 250,000 typical gates; (4)Low power consumption (typical specification less than 0.5 mA in standby mode for most devices); (5)FLEX 10KA devices include pull-up clamping diode, selectable on a pin-by-pin basis for 3.3-V PCI compliance; (6)Select FLEX 10KA devices support 5.0-V PCI buses with eight or fewer loads; (7)Built-in Joint Test Action Group (JTAG) boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990, without consuming any device logic.

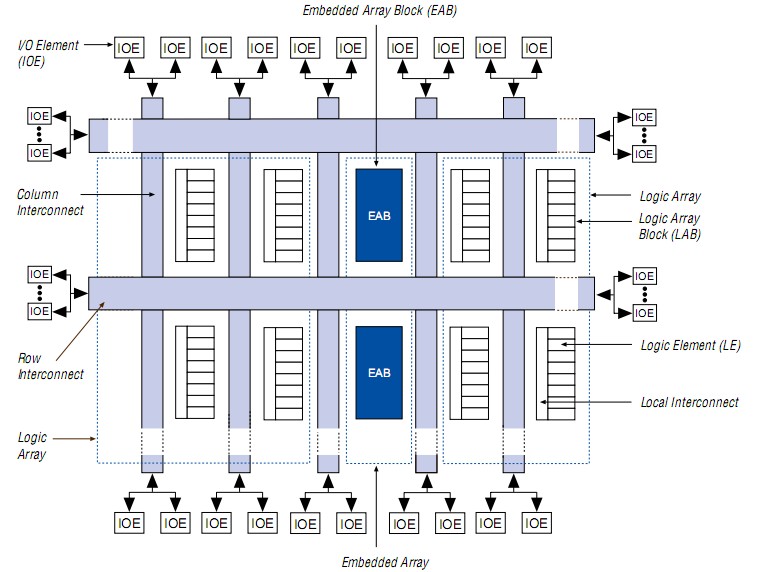

Diagrams
