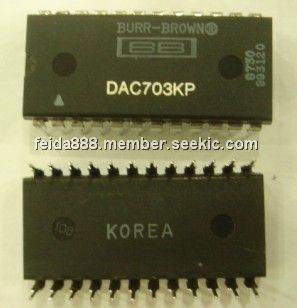

Product Summary
The DAC703KP is a monolithic 16-bit digital-to-analog converter. The DAC703KP comprises of complete 16-bit digital-to-analog converters that includes a precision buried-zener voltage reference and a low-noise, fastsettling output operational amplifier (voltage output models), all on one small monolithic chip. A combination of current-switch design techniques accomplishes not only 15-bit monotonicity over the entire specified temperature range, but also a maximum end-point linearity error of ±0.0015% of full-scale range. Total full-scale gain drift of the DAC703KP is limited to ±10ppm/℃ maximum(LH and CH grades).
Parametrics
DAC703KP absolute maximum ratings: (1)+VCC to Common: 0V, +18V; (2)–VCC to Common: 0V, –18V; (3)VDD to Common: 0V, +18V; (4)Digital Data Inputs to Common: –1V, +18V; (5)Reference Out to Common: Indefinite Short to Common; (6)External Voltage Applied to RF: ±18V; (7)External Voltage Applied to D/A Output: –5V to +5V. VOUT: Indefinite Short to Common; (8)Power Dissipation: 1W; (9)Storage Temperature: –60℃ to +150℃; (10)Lead Temperature (soldering, 10s): 300℃.
Features
DAC703KP features: (1)Vout and iout models; (2)l HIGH ACCURACY: Linearity Error ±0.0015% of FSR max. Differential Linearity Error ±0.003% of FSR max.

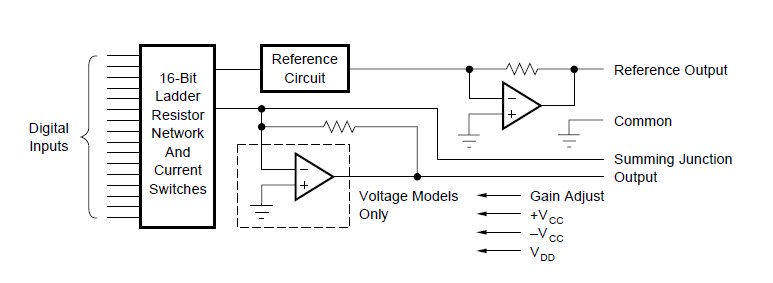

Diagrams
