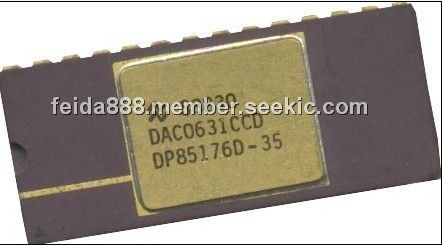

Product Summary

The DAC0631CCDis a triple 6-bit video DAC with color palette. The DAC0631CCD is monolithic triple 6 bit vidio digital to analog converter with on chip 256 x 18 bit color palettes and is intended for grahics applications. The color palette makes possible the display of 256 colors through the internal 6 bit video DACs. The DAC0631CCD is capable of driving 75Ω or 37.5Ω loads to normal video levels at pixel at pixel rates of 50MHz.

Parametrics

DAC0631CCD absolute maximum ratings: (1)Positive supply voltage: GND 0.3 to 7V; (2)Voltage at logic inputs: GND 0.5 to V+ +0.5V; (3)Voltage at analog pins: GND 0.5 to V+ +0.5V; (4)Analog output current: 45mA; (5)Reference current: 15mA; (6)DC digital output current: 25mA; (7)Power dissipation: 1.0W.

Features

DAC0631CCD features: (1)Pixel rates of 50MHzz; (2)256 x 18 bit color palette; (3)256K possible colors; (4)Color palette read back; (5)Three internal 6 bit DACs; (6)Directly drives 75Ω video cable; (7)RGB analog output; (8)Composite blank; (9)Single +5Vsupply.

Diagrams

DAC0631CCD block and connection diagrams
