Product Summary

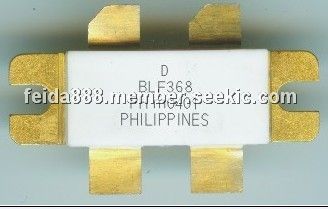

The BLF368 is a VHF push-pull power MOS transistor. The BLF368 dual push-pull silicon N-channel enhancement mode vertical D-MOS transistor is designed for broadcast transmitter applications in the VHF frequency range. The transistor BLF368 is encapsulated in a 4-lead SOT262A1 balanced flange package, with two ceramic caps. The mounting flange provides the common source connection for the transistors.
Parametrics
BLF368 absolute maximum ratings: (1)VDS drain-source voltage: 65 V; (2)VGS gate-source voltage: ±20 V; (3)ID drain current (DC): 25 A; (4)Ptot total power dissipation Tmb ≤ 25 ℃ total device; both sections equally loaded: 500 W; (5)Tstg storage temperature -65 +150 ℃; (6)Tj junction temperature: 200 ℃.
Features
BLF368 features: (1)High power gain; (2)Easy power control; (3)Good thermal stability; (4)Gold metallization ensures excellent reliability.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BLF368 |
NXP Semiconductors |
Transistors RF MOSFET Power BULK TNS-RFUH |
Data Sheet |
Negotiable |
|
||||||
|
BLF368,112 |
NXP Semiconductors |
Transistors RF MOSFET Power BULK TNS-RFUH |
Data Sheet |
|
|
||||||
