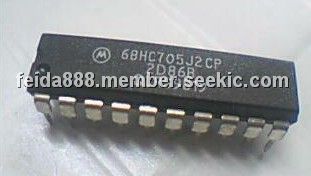

MC68HC705J2CP

HCMOS microcontroller unit, DIP-20, Fully Static Operation, Real-Time Interrupt Circuit

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.50~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.50~2.00

PartNumber:: MC68HC705J2CP

Brand:: Motorola, Inc - Motorola | Pack: DIP | D/C: 98+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Cherry's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-14

From Other Seller

Part Number:MC68HC705J2CP
US $1.50 - 2.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG100

US $10.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The MC68HC705J2CP is a low-cost, high-performance 8-bit microcontroller unit. It is based on the customer-specified integrated circuit (CSIC) design strategy. The MC68HC705J2CP uses the popular M68HC05 central processor unit (CPU) and is available with a variety of subsystems, memory sizes and types, and package types. On-chip memory is enhanced with 2 Kbytes of erasable, programmable ROM (EPROM), 112 Kbytes of RAM, and a bootloader ROM.

Parametrics

MC68HC705J2CP absolute maximum ratings: (1)Supply Voltage:-0.3V to +7.0V; (2)Input Voltage: All Pins in Normal Operation:VSS-0.3V to VDD+0.3V, IRQ/VPP Pin in Bootloader Mode:VSS-0.3V to 2*VDD+0.3V; (3)EPROM Programming Voltage (IRQ/VPP Pin): 16.75V; (4)Current Drain Per Pin (ExcludingVDD and VSS):25mA; (5)Operating Temperature Range:-40℃ to +85℃; (6)Storage Temperature Range:-65℃ to +150℃.

Features

MC68HC705J2CP features: (1)Popular M68HC05 CPU; (2)Memory-Mapped Input/Output (I/O) Registers; (3)2064 Bytes of User EPROM Including 16 User Vector Locations; (4)112 Bytes of Static RAM (SRAM); (5)14 Bidirectional I/O Pins; (6)Fully Static Operation With No Minimum Clock Speed; (7)On-Chip Oscillator With Crystal/Ceramic Resonator Connections; (8)15-Bit Multifunction Timer; (9)Real-Time Interrupt Circuit; (10)Bootloader ROM; (11)Power-Saving STOP, WAIT, and Data Retention Modes; (12)MC68HC05J1 Emulation Mode; (13)Selectable Edge-Sensitive or Edge- and Level-Sensitive External Interrupt Trigger; (14)Selectable Computer Operating Properly (COP) Timer; (15)8 x 8 Unsigned Multiply Instruction; (16)One Time Programmable 20-Pin Dual-in-Line Package (DIP).
