Product Summary

The BCM6020KPF is a scalable DSL transceiver. The BCM6020KPF is the first single-chip VDSLsolution to offer support for unshielded telephone distribution cable through the use of on-chip advanced digital filtering, precoding, and equalization techniques. The BCM6020KPF offers DSLsystem vendors an unmatched capability for the provision of high-speed data transmission services on twisted-pair copper wire supporting applications such as Internet access, LAN extensions,work-at-home, remote office, and switched digital video.

Features

BCM6020KPF features: (1)Supports bit rates to 52 Mbps and baud rates to13 Mbaud; (2)Less than 1W power consumption; (3)Integrated carrier and clock recovery loops for ease of use; (4)Programmable 4-256 QAM constellations; (5)Single 3.3V supply operation; (6)On-chip A/D and D/A converters; (7)On-chip clock generation; (8)Adjustable upstream and downstream center frequencies; (9)Extensive power management features; (10)JTAG test interface; (11)Small 100-pin PQFP form factors.

Diagrams

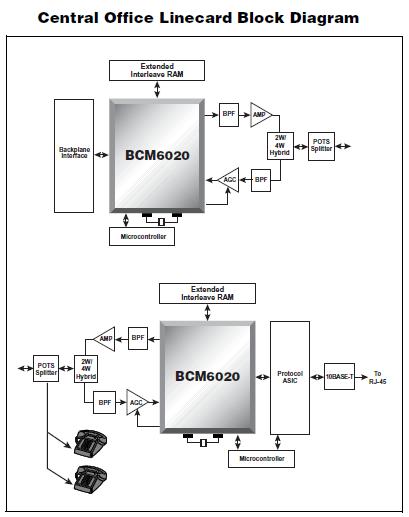

BCM6020KPF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BCM6020KPF
BCM6020KPF

Other


Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
BCM6020KPF
BCM6020KPF

Other


Data Sheet

Negotiable
