Product Summary
The AWT6166RM15P8 is a quad band power amplifier module with integrated power control. It integrated CMOS power control scheme simplifies the design of the transmitter by eliminating the need for external power control circuitry. The applications of the AWT6166RM15P8 include Dual/Tri/Quad Band Handsets & PDAs.
Parametrics
AWT6166RM15P8 absolute maximum ratings: (1)Supply Voltage (VBATT): +7 V; (2)RF Input Power (RFIN): 11 dBm; (3)Control Voltages (VRAMP): -0.3 to 1.8 V; (4)Storage Temperature (TSTG): - 55 to 150 ℃.
Features
AWT6166RM15P8 features: (1)Integrated Vreg (regulated supply); (2)Harmonic Performance . -20 dBm; (3)High Efficiency (PAE) at Pmax: GSM850, 53%, GSM900, 55%, DCS, 53%, PCS, 53%; (4)+35 dBm GSM850/900 Output Power at 3.5 V; (5)+33 dBm DCS/PCS Output Power at 3.5 V; (6)55 dB Dynamic Range; (7)GPRS Class 12 Capable; (8)RoHS Compliant Package, 250℃ MSL-3.

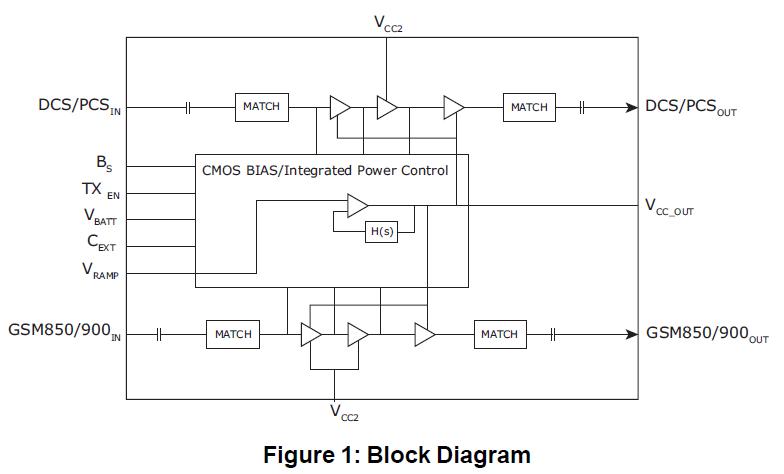

Diagrams
 |
