Product Summary

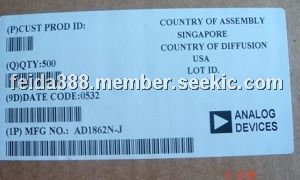

The AD1862N-J is a monolithic 20-bit digital audio DAC. It provides a 20-bit DAC, 20-bit serial-to-parallel input register and voltage reference. The analog portion of the AD1862N-J is fabricated with bipolar and MOS devices as well as thin-film resistors. The applications of the AD1862N-J are High Performance Compact Disc Players, Digital Audio Amplifiers, Synthesizer Keyboards, Digital Mixing Consoles, High Resolution Signal Processing.
Parametrics
AD1862N-J absolute maximum ratings: (1)VL to DGND:0 to +13.2 V; (2)–VL to DGND:–VS to 0 V; (3)VS to AGND:0 to +13.2 V; (4)–VS to AGND:–13.2 to 0 V; (5)AGND to DGND:–0.3 to +0.3 V; (6)Digital Inputs to DGND:–0.3 to VL; (7)Soldering:+300℃, 10 sec; (8)Storage Temperature:–60℃ to +100℃.
Features
AD1862N-J features: (1)120 dB Signal-to-Noise Ratio; (2)102 dB D-Range Performance; (3)±1 dB Gain Linearity; (4)±1 mA Output Current; (5)16-Pin DIP Package; (6)0.0012% THD + N.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD1862N-J |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
