Product Summary

The bcm8129 is a multi-rate 10-GBPS SONET/SDH/10GE/FEC DEMUX. The applications of the bcm8129 include OC-192/STM-64/10GE transmission equipment, SONET/SDH optical modules, ADD/DROP multiplexers, Digital cross-connects, ATM switch backbones, SONET test equipment, Terabit routers, Edge routers.

Features

bcm8129 features: (1)10-Gigabit MSA (Multi-Source Agreement) compliant; (2)Fully integrated CDR and demultiplexer with limiting amplifier; (3)1:16 DEMUX with LVDS data outputs; (4)Phase adjustment (Typical 35 ps range with 2.5ps granularity); (5)Decision Threshold Level adjustment; (6)Serial data polarity invert; (7)Bit order reversal; (8)Lock detect; (9)Exceeds SONET jitter requirements; (10)Core power supply: 1.8V; (11)I/O power supply: CML and LVDS at 1.8V, CMOS at 1.8V or 3.3V; (12)Power consumption: 950 mW; (13)Standard CMOS fabrication process; (14)143-pin BGA package.

Diagrams

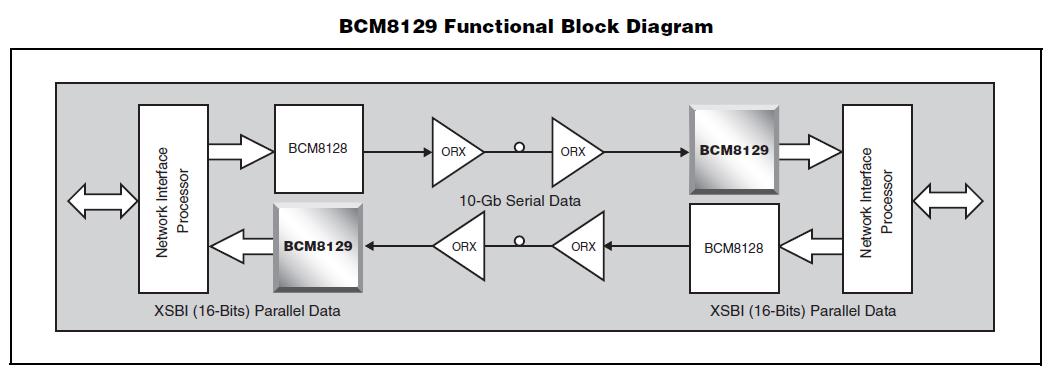

bcm8129 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BCM8129
BCM8129
Other

Data Sheet
Negotiable
