Product Summary

Offered in 4Gx8bit, the K9MDG08U5M-PCBO is a 32G-bit NAND Flash Memory with spare 1G-bit. Its NAND cell provides the most costeffective solution for the solid state mass storage market. A program operation of the K9MDG08U5M-PCBO can be performed in typical 800μs on the 4,224-byte page and an erase operation can be performed in typical 1.5ms on a (512K+16K)byte block. Data in the data register can be read out at 25ns (K9MDG08U5M-PCBO: 50ns) cycle time per byte. The I/O pins of the K9MDG08U5M-PCBO serve as the ports for address and data input/output as well as command input. The on-chip write controller automates all program and erase functions including pulse repetition, where required, and internal verification and margining of data. The K9MDG08U5M-PCBO is an optimum solution for large nonvolatile storage applications such as solid state file storage and other portable applications requiring non-volatility.


K9MDG08U5M-PCBO absolute maximum ratings: (1)Voltage on any pin relative to VSS, VCC: -0.6 to +4.6 v; VIN: -0.6 to +4.6 V; VI/O: -0.6 to Vcc+0.3 (<4.6V) v; (2)Temperature Under Bias: K9XXG08UXM-XCB0, TBIAS: -10 to +125℃; K9XXG08UXM-XIB0, TBIAS: -40 to +125℃; (3)Storage Temperature, TSTG: -65 to +150 ℃; (4)Short Circuit Current, IOS: 5 mA.


K9MDG08U5M-PCBO features: (1)Voltage Supply: 2.7 V ~ 3.6 V; (2)Organization: Memory Cell Array : (2G + 64M) x 8bit; Data Register: (4K + 128) x 8bit; (3)Automatic Program and Erase: Page Program: (4K + 128)Byte; Block Erase: (512K + 16K)Byte; (4)Page Read Operation: Page Size: (4K + 128)Byte; Random Read : 60μs(Max.); Serial Access: 25ns(Min.) K9MDG08U5M: 50ns(Min.); (5)Memory Cell : 2bit / Memory Cell: 4G / 8G / 16G x 8 Bit NAND Flash Memory; (6)Fast Write Cycle Time: Program time: 800μs(Typ.); Block Erase Time: 1.5ms(Typ.); (7)Command/Address/Data Multiplexed I/O Port; (8)Hardware Data Protection: Program/Erase Lockout During Power Transitions; (9)Reliable CMOS Floating-Gate Technology: Endurance : TBD(with 4bit/512byte ECC); Data Retention: 10 Years; (10)Command Register Operation; (11)Unique ID for Copyright Protection.

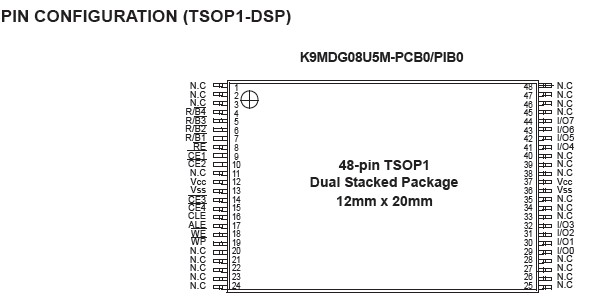

K9MDG08U5M-PCBO pin configuration
