Product Summary

The EPF10K50EQC240-2 is an Embedded Programmable Logic Device. Based on reconfigurable CMOS SRAM elements, the EPF10K50EQC240-2 incorporates all features necessary to implement common gate array megafunctions. With up to 200,000 typical gates, the EPF10K50EQC240-2 provides the density, speed, and features to integrate entire systems, including multiple 32-bit buses, into a single device.

Parametrics

EPF10K50EQC240-2 absolute maximum ratings: (1)VCCINT, Supply voltage With respect to ground: –0.5 to 3.6 V; (2)VCCIO: –0.5 to 4.6 V; (3)VI, DC input voltage: –2.0 to 5.75 V; (4)IOUT, DC output current, per pin: –25 to 25 mA; (5)TSTG, Storage temperature No bias: –65 to 150℃; (6)TAMB, Ambient temperature Under bias: –65 to 135℃; (7)TJ, Junction temperature: 135℃.

Features

EPF10K50EQC240-2 features: (1)Enhanced embedded array for implementing megafunctions such as efficient memory and specialized logic functions; (2)Dual-port capability with up to 16-bit width per embedded array block (EAB); (3)Logic array for general logic functions; (4)30,000 to 200,000 typical gates (see Tables 1 and 2); (5)Up to 98,304 RAM bits (4,096 bits per EAB), all of which can be used without reducing logic capacity.

Diagrams

EPF10K50EQC240-2 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

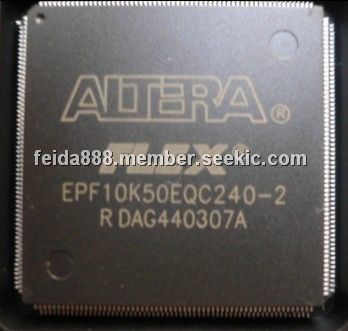

EPF10K50EQC240-2
EPF10K50EQC240-2


IC FLEX 10KE FPGA 50K 240-PQFP

Data Sheet

0-24: $123.84
EPF10K50EQC240-2N
EPF10K50EQC240-2N


IC FLEX 10KE FPGA 50K 240-PQFP

Data Sheet

0-24: $123.84
