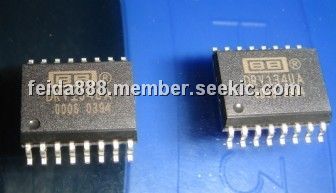

Product Summary

The DRV134UA is a differential output amplifier that converts a single-ended input to a balanced output pair. The balanced audio driver of the DRV134UA consists of high performance op amps with on-chip precision resistors. It is fully specified for high performance audio applications and has excellent ac specifications, including low distortion (0.0005% at 1kHz) and high slew rate (15V/ms). The on-chip resistor DRV134UA is laser-trimmed for accurate gain and optimum output common-mode rejection. Wide output voltage swing and high output drive capability allow use in a wide variety of demanding applications. It easily drives the large capacitive loads associated with long audio cables.

Parametrics

DRV134UA absolute maximum ratings: (1)Supply Voltage, V+ to V–: 40V; (2)Input Voltage Range: V– to V+; (3)Output Short-Circuit (to ground): Continuous; (4)Operating Temperature: –55℃ to +125℃; (5)Storage Temperature: –55℃ to +125℃; (6)Junction Temperature: +150℃; (7)Lead Temperature (soldering, 10s): +300℃.

Features

DRV134UA features: (1)Balanced output; (2)Low distortion: 0.0005% at f = 1kHz; (3)Wide output swing: 17Vrms into 600W; (4)High capacitive load drive; (5)High slew rate: 15V/ms; (6)Wide supply range: ±4.5V to ±18V; (7)Low quiescent current: ±5.2mA; (8)8-Pin DIP, SO-8, and sol-16 packages; (9)Companion to audio differentialine receivers: INA134 and INA137; (10)Improved replacement foR SSM2142.

Diagrams

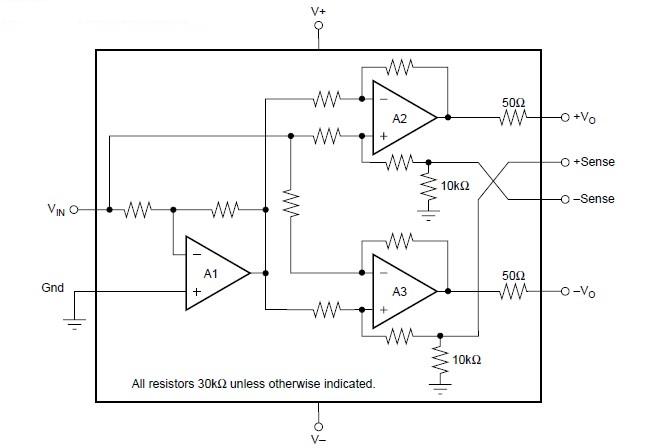

DRV134UA block diagram
