DAC7644EB

DIP, 16-bit, quad voltage output, digital-to-analog converter, 10mW, 10ms

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: DAC7644EB

Brand:: Texas Instruments - TI | Pack: DIP | D/C: 06+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Cherry's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-11

From Other Seller

Part Number:DAC7644EB
US $1.00 - 2.00
EKZE250ELL152MK25S

US $0.10 - 1.00 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

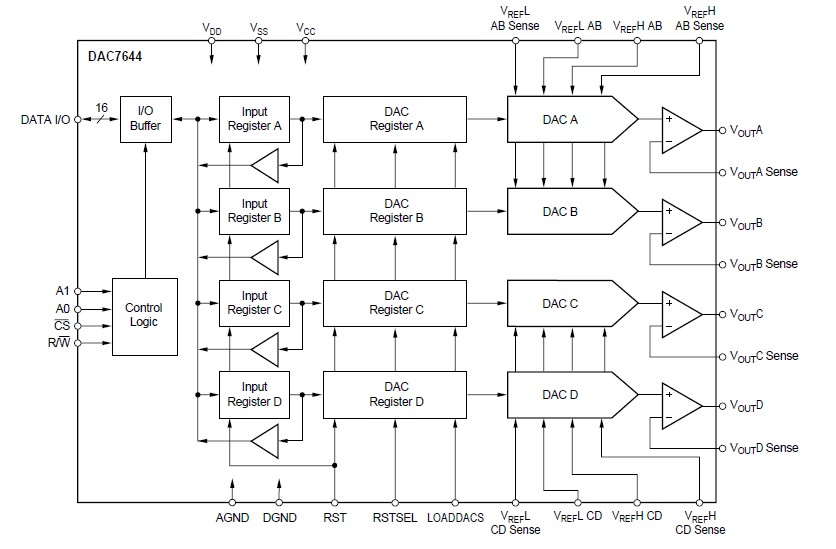

The DAC7644EB is a 16-bit, quad voltage output digital-to-analog converter. The DAC7644EB is a 16-bit, quad voltage output digitalto analog converter with guaranteed 15-bit monotonic performance over the specified temperature range. The DAC7644EB accepts 16-bit parallel input data, has double buffered DAC input logic (allowing simultaneous update of all DACs), and provides a readback mode of the internal input registers. Programmable asynchronous reset clears all registers to a mid-scale code of 8000H or to a zeroscale of 0000H. The DAC7644EB can operate from a single +5V supply or from +5V and –5V supplies.

Parametrics

DAC7644EB absolute maximum ratings: (1)VCC and VDD to VSS: –0.3V to 11V; (2)VCC and VDD to GND: –0.3V to 5.5V; (3)VREFL to VSS: –0.3V to (VCC – VSS); (4)VCC to VREFH: –0.3V to (VCC – VSS); (5)VREFH to VREFL: –0.3V to (VCC – VSS); (6)Digital Input Voltage to GND: –0.3V to VDD + 0.3V; (7)Digital Output Voltage to GND: –0.3V to VDD + 0.3V; (8)Maximum Junction Temperature: +150℃; (9)Operating Temperature Range: –40℃ to +85℃; (10)Storage Temperature Range: –65℃ to +125℃; (11)Lead Temperature (soldering, 10s): +300℃.

Features

DAC7644EB features: (1)Low power: 10mW; (2)Unipolar or bipolar operation; (3)Settling time: 10ms to 0.003%; (4)15-bit linearity and monotonicity: –40℃ to +85℃; (5)Programmable reset to mid-scale or zero-scale; (6)Data readback; (7)Double-buffered data inputs.
