Product Summary

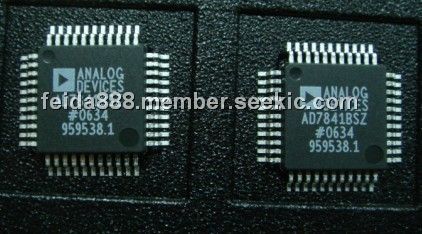

The AD7841BSZ contains eight 14-bit DACs on one monolithic chip. It has output voltages with a full-scale range of ±10 V from reference voltages of ±5 V. The AD7841BSZ accepts 14-bit parallel loaded data from the external bus into one of the input registers under the control of the WR, CS and DAC channel address pins, A0–A2. The AD7841BSZ is available in a 44-lead MQFP package.
Parametrics
AD7841BSZ absolute maximum ratings: (1)VCC to GND: –0.3 V, +7 V or VDD + 0.3 V; (2)VDD to GND: –0.3 V, +17 V; (3)VSS to GND: +0.3 V, –17 V; (4)Digital Inputs to GND: –0.3 V, VCC + 0.3 V; (5)VREF(+) to VREF(–): –0.3 V, +18 V; (6)VREF(+) to GND: VSS – 0.3 V, VDD + 0.3 V; (7)VREF(–) to GND: VSS – 0.3 V, VDD + 0.3 V; (8)DUTGND to GND: VSS – 0.3 V, VDD + 0.3 V; (9)VOUT (A–H) to GND: VSS – 0.3 V, VDD + 0.3 V; (10)Operating Temperature Range; (11)Industrial (A Version): –40℃ to +85℃; (12)Storage Temperature Range: –65℃ to +150℃; (13)Junction Temperature: +150℃; (14)ESD: >4000 V.
Features
AD7841BSZ features: (1)Eight 14-Bit DACs in One Package; (2)Voltage Outputs; (3)Offset Adjust for Each DAC Pair; (4)Reference Range of ;±5 V (5)Maximum Output Voltage Range of ±10 V; (6)±15 V, ± 10% Operation; (7)Clear Function to User-Defined Voltage; (8)44-Lead MQFP Package.

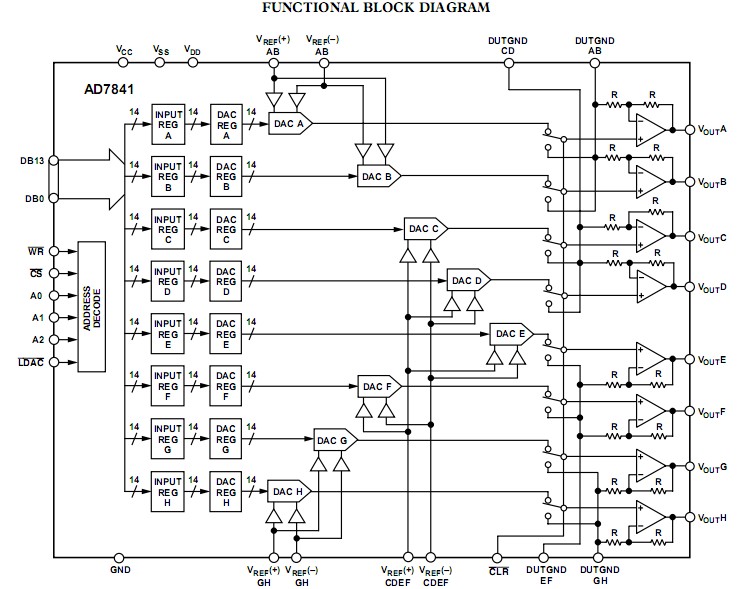

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7841BSZ |
|
IC DAC 14BIT OCTAL V-OUT 44-MQFP |
Data Sheet |
|
|
||||||||||||||
|
AD7841BSZ-REEL |
|
IC DAC 14BIT OCTAL VOUT 44-MQFP |
Data Sheet |
|
|
||||||||||||||
