Product Summary

The SKY77711-13 is a Power Amplifier Module (PAM). It is a fully matched 10-pad surface mount module developed for Code Division Multiple Access (CDMA) applications. This small and efficient module packs full coverage of bandwidth for 1850–1910 MHz into a single compact package. Because of high efficiencies attained throughout the entire power range, the SKY77711-13 delivers unsurpassed talk-time advantages. A directional coupler is integrated into the module thus eliminating the need for any external coupler.

Features

SKY77711-13 features: (1)Low voltage positive bias supply 3.2 V to 4.2 V; (2); (3)High efficiency - 40% @ 28 dBm; (4)Large dynamic range; (5)Small, low profile package: 3 mm x 3 mm x 0.9 mm; 10-pad configuration; (6)Power down control; (7)InGaP; (8)Supports low collector voltage operation; (9)Digital Enable; (10)No VREF required; (11)CMOS compatible control signals.

Diagrams

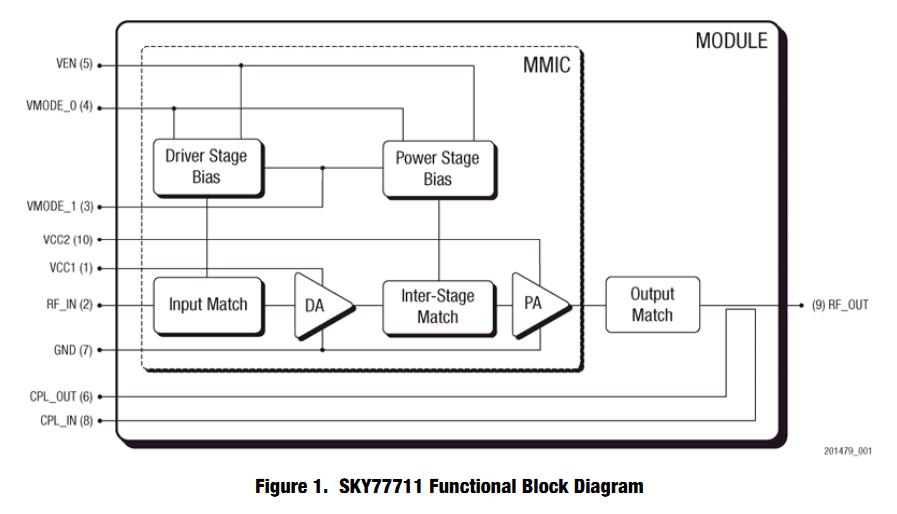

SKY77711-13 functional block diagram
