Product Summary

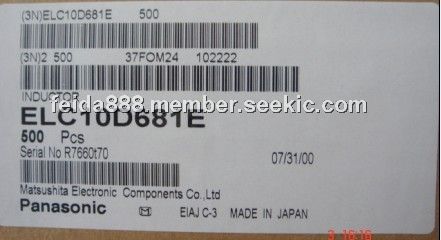

The ELC10D681E is a choke coil.

Parametrics

ELC10D681E absolute maximum ratings: (1)Inductance: 680.0μH; (2)Tolerance: ±10%; (3)Test Freq.: 10kHz; (4)RDC at 20℃: 0.660Ω; (5)IDC. at 20 ℃: 0.64Amax.

Features

ELC10D681E features: (1)Inductance Tolerance:± 10%; (2)DC Resistance Max:0.66ohm; (3)DC Current Rating:640mA; (4)Core Material:Ferrite; (5)Inductor Case Style:Radial Leaded; (6)No. of Pins:2; (7)Lead Spacing:5mm; (8)SVHC:No SVHC (20-Jun-2011); (9)Core Material:Ferrite; (10)DC Current Max:640mA; (11)Inductor Type:Choke Coil; (12)Package / Case:Radial; (13)Resistance:0.66ohm; (14)Test Frequency:10kHz.

Diagrams

ELC10D681E Dimensions
