The EG80C196MH is a member of Intels family of 16-bit MCS96 microcontrollers. It is designed primarily tocontrol three-phase AC induction and DC brushless motors. The EG80C196MH features an enhanced three-phase waveformgenerator specifically designed for use in inverter motor-control applications. This peripheral provides pulse-width modulation and three-phase sine wave generation with minimal CPU intervention.
Parametrics
EG80C196MH absolute maximum ratings: (1)Storage Temperature: – 65℃ to150℃; (2)Ambient Temperature under Bias: – 40℃ to85℃; (3)Voltage from Vor EA to Vss or ANGND: – 0.5 V to 13.0 V; (4)Voltage with respect to Vss or ANGND: – 0.5 V to7.0 V; (5)Power Dissipation: 1.5 W.
Features
EG80C196MH features: (1)High Performance CHMOS 16-bit CPU; (2)16 MHz Operating Frequency; (3)32 Kbytes of On-chip OTPROM/ROM; (4)744 Bytes of On-chip Register RAM; (5)Register-to-register Architecture; (6)16 Prioritized Interrupt Sources; (7)Peripheral Transaction Server (PTS) with 15 Prioritized Sources; (8)Up to 52 I/O Lines; (9)3-phase Complementary Waveform Generator; (10)8-channel 8 or 10bit A/D with Sample and Hold.

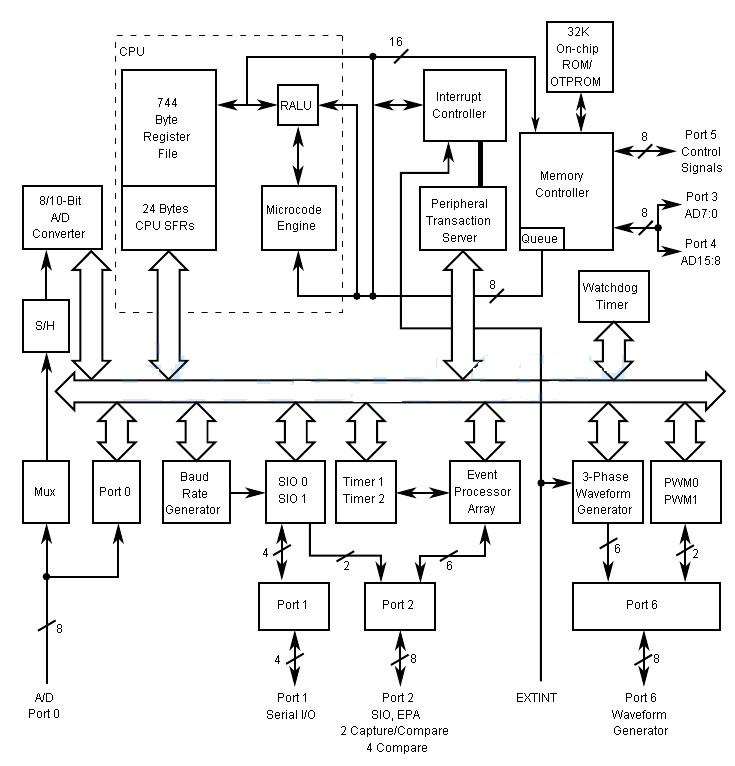

Diagrams
